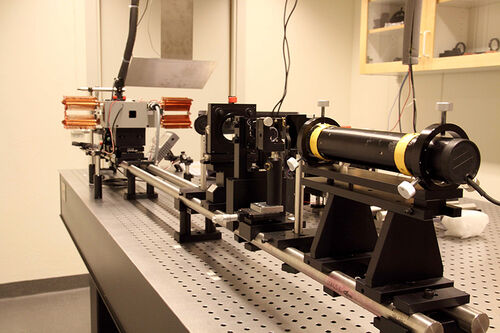

Ultra small angle light scattering (USALS)
The instrument is used for simultaneous dynamic and static light scattering at ultra-small angles using a CCD camera as a position sensitive 2D-detector. The scattered light is detected from 0.3º to 6º, corresponding to length scales from a few hundred nanometers to a fraction of a millimeter. Time resolved static measurements can be performed with a time resolution of approx. 100 msec. Multispeckle correlation functions are processed in real-time, thereby allowing measurements of a set of intensity autocorrelation functions at different q-values using measurement times that are comparable to the longest correlation time. A multitau correlation scheme is adopted (delay time space quasi-logarithmically), requiring thereby less data storage and processing time. This allows one to calculate time- and pixel-averaged correlation functions in real time. Multiple exposure times are used in order to optimize the mean intensity level for all scattering vectors. The instrument is equipped with a HeNe laser light source with a wavelength of 632.8nm and a maximum power of 35 mW. The sample is filled into square glass cells with path lengths ranging from 10 μm to 1 mm and placed in a temperature-controlled sample environment. The instrument is designed to study both ergodic and non-ergodic samples.
